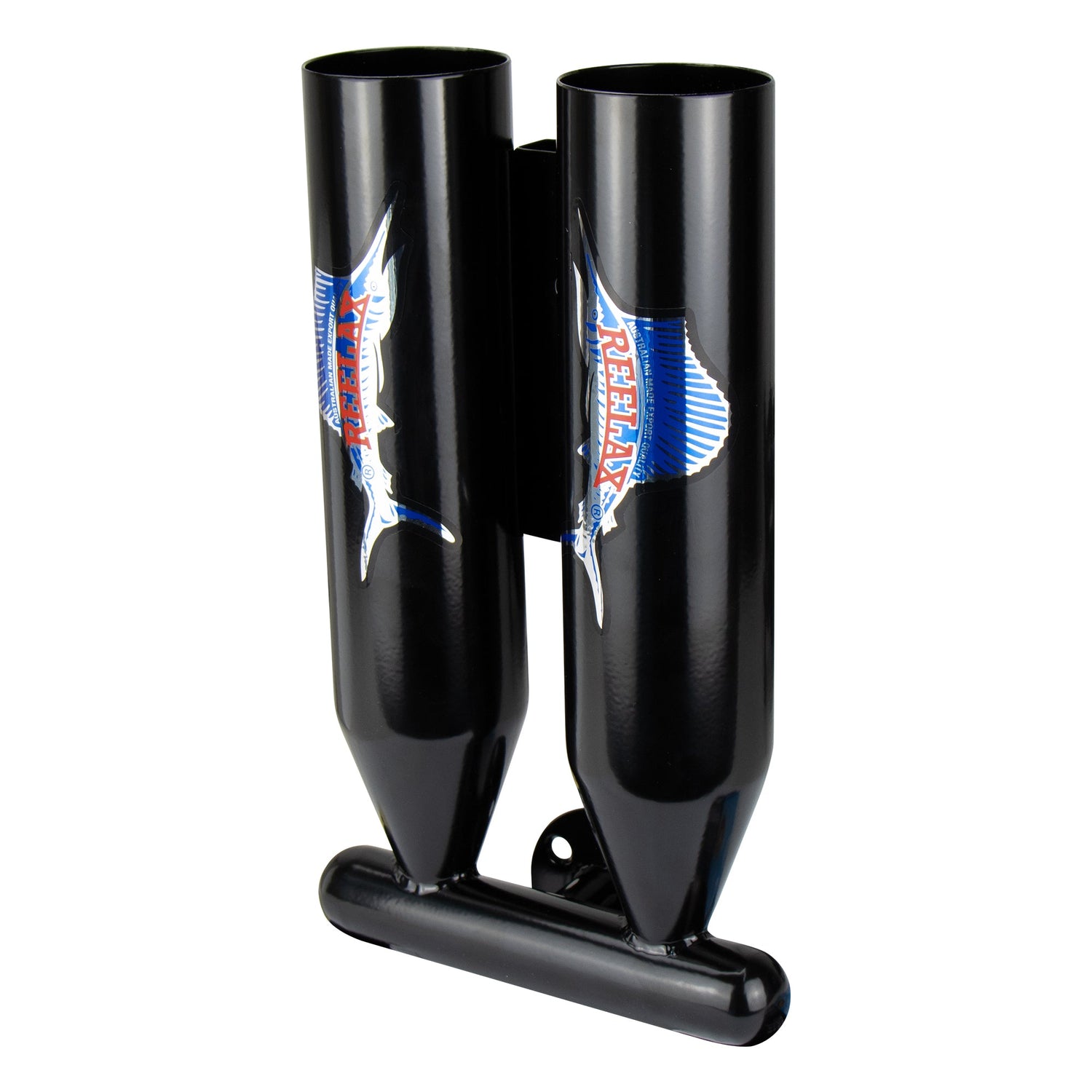

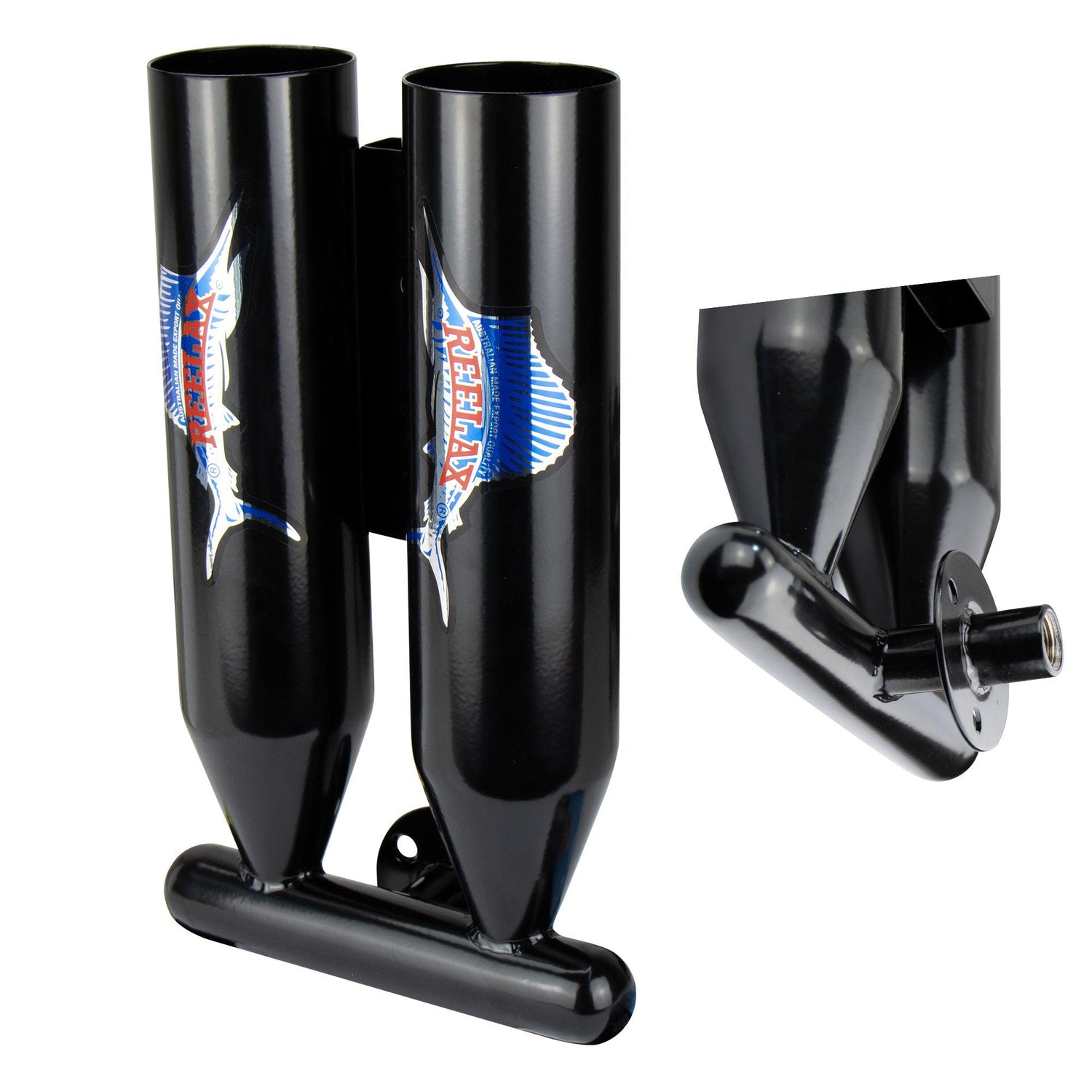

Taking the Live Bait/Slimy Tube market to the next level are the new alluring Black Edition Through Transom Concealed Inlet Tubes from Reelax. These are designed to be mounted on a transom/bulkhead utilising an upper mounting block and a lower through transom (concealed inlet) fitting for support. The through transom concealed inlet allows you to drill a small hole through the transom to accept plumbing on the inside, thereby allowing you to run hidden plumbing. The concealed bulkhead inlet is a standard 1/2in BSP female thread – ready for the customer to thread either a 1/2in BSP Male elbow or straight tail in, or other plumbing fittings as required. The single inlet pumps water to both tubes simultaneously. The Reelax Live Bait Tubes prevent line tangling from swimming rigged baits and are ideal for slimys, gar and any other small live baits. Made of 316 grade stainless steel and black powder coated, the tubes are 76mm diameter and are 250mm in length. Raw water pumps available on request (additional).
Dimensions
Overall Length: 375mm
Rear Mounting Box Section: 150mm Long, with 50mm hole centres x 8mm size.
Rear Mounting Through Transom Inlet: 70mm diameter, with 3 x 5/16in holes.
Depth of Through Transom Inlet: 30mm.
Through Transom Inlet Size: Accepts 1/2in BSP Male Thread.
Please Note: Mounting fasteners and plumbing fittings are not included.
