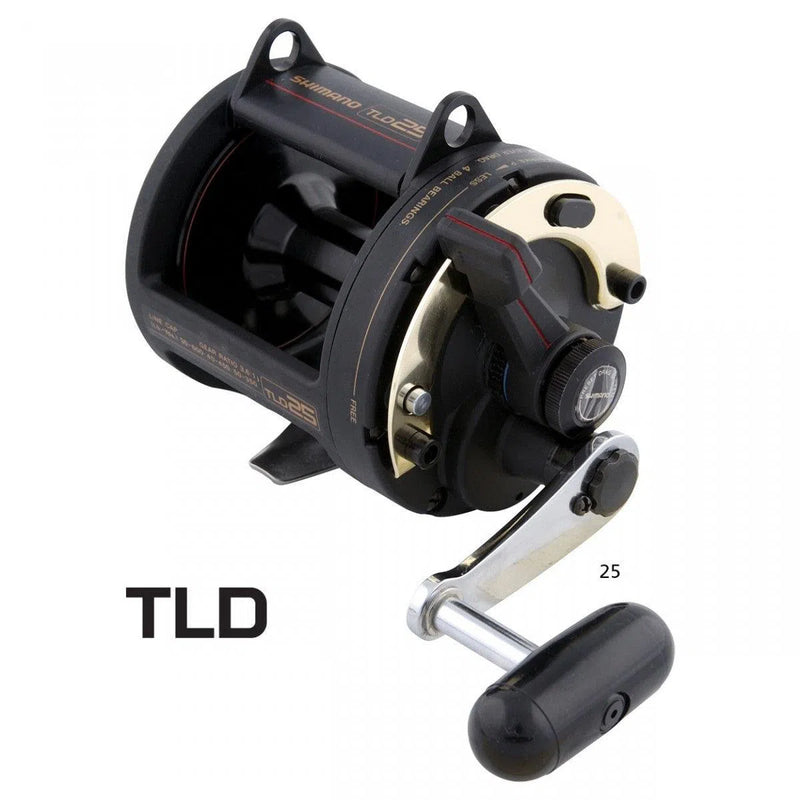

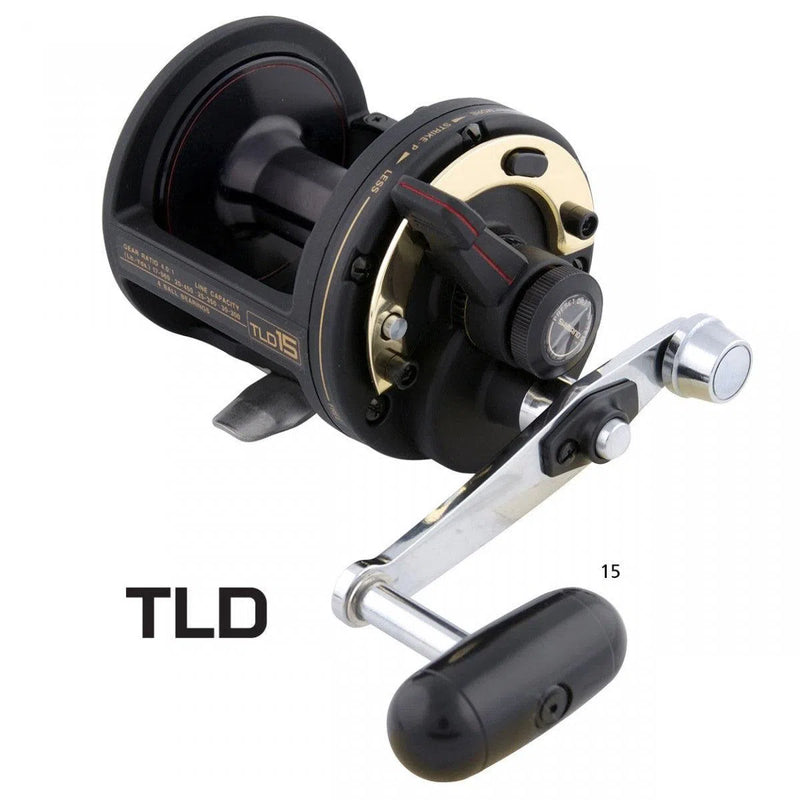

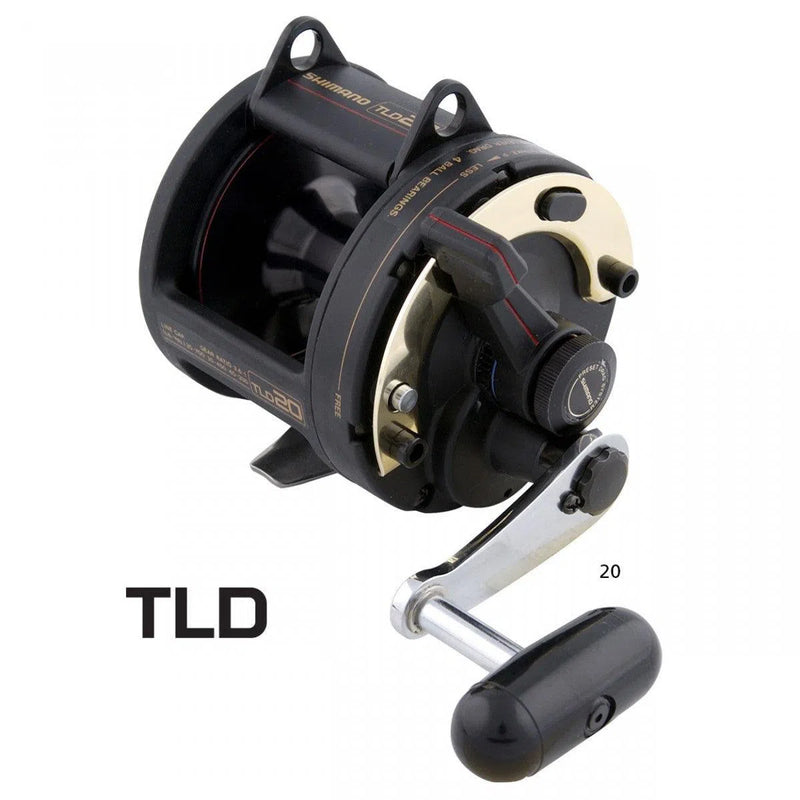

Shimano's TLDs are an iconic range of overhead lever drag reels. Shimano's durable and enduring TLD reels are arguably the most versatile lever drags in the world. Great for light to medium tackle game fishing, they can also be cast. All TLDs feature one-piece graphite/titanium bodies, 4 A-RB bearings, stainless steel gears and main shaft, stainless steel reel foot, ball bearing titanium drags, and comfortable, easy-to-grasp power handles with torpedo knobs. They come in three sizes: 15, 20 and 25.
ARB - The secret of longterm rotation performance is to prevent any form of rust, corrosion or oxidisation of the bearings, which can cause a reduction in the reels performance over time. Shimano ARB bearings are the answer to this and are fitted as standard on most Shimano freshwater reels and on all Shimano saltwater models.
Features
- 10 YEAR WARRANTY
- SALTWATER READY
- LEVER DRAG
Specifications
| ITEM CODE | RETRIEVE PER CRANK (CM) | MAX DRAG (KG) | DESCRIPTION | BEARINGS | GEAR RATIO | POWERPRO BRAID (LB/YDS) | WEIGHT (G) | LINE CAPACITY (MM/M) |
| TLD15 | 76 | 10 | TRITON LEVER DRAG 15 | 4 | 4.0:1 | 50/700 | 527 | 0.51/320 |
| TLD20 | 81 | 10 | TRITON LEVER DRAG 20 | 4 | 3.6:1 | 50/820 | 670 | 0.56/411 |
| TLD25 | 81 | 10 | TRITON LEVER DRAG 25 | 4 | 3.6:1 | 50/1015 | 695 | 0.66/411 |
Shimano's TLDs are an iconic range of overhead lever drag reels. Shimano's durable and enduring TLD reels are arguably the most versatile lever drags in the world. Great for light to medium tackle game fishing, they can also be cast. All TLDs feature one-piece graphite/titanium bodies, 4 A-RB bearings, stainless steel gears and main shaft, stainless steel reel foot, ball bearing titanium drags, and comfortable, easy-to-grasp power handles with torpedo knobs. They come in three sizes: 15, 20 and 25.
ARB - The secret of longterm rotation performance is to prevent any form of rust, corrosion or oxidisation of the bearings, which can cause a reduction in the reels performance over time. Shimano ARB bearings are the answer to this and are fitted as standard on most Shimano freshwater reels and on all Shimano saltwater models.
Features
- 10 YEAR WARRANTY
- SALTWATER READY
- LEVER DRAG
Specifications
| ITEM CODE | RETRIEVE PER CRANK (CM) | MAX DRAG (KG) | DESCRIPTION | BEARINGS | GEAR RATIO | POWERPRO BRAID (LB/YDS) | WEIGHT (G) | LINE CAPACITY (MM/M) |
| TLD15 | 76 | 10 | TRITON LEVER DRAG 15 | 4 | 4.0:1 | 50/700 | 527 | 0.51/320 |
| TLD20 | 81 | 10 | TRITON LEVER DRAG 20 | 4 | 3.6:1 | 50/820 | 670 | 0.56/411 |
| TLD25 | 81 | 10 | TRITON LEVER DRAG 25 | 4 | 3.6:1 | 50/1015 | 695 | 0.66/411 |
