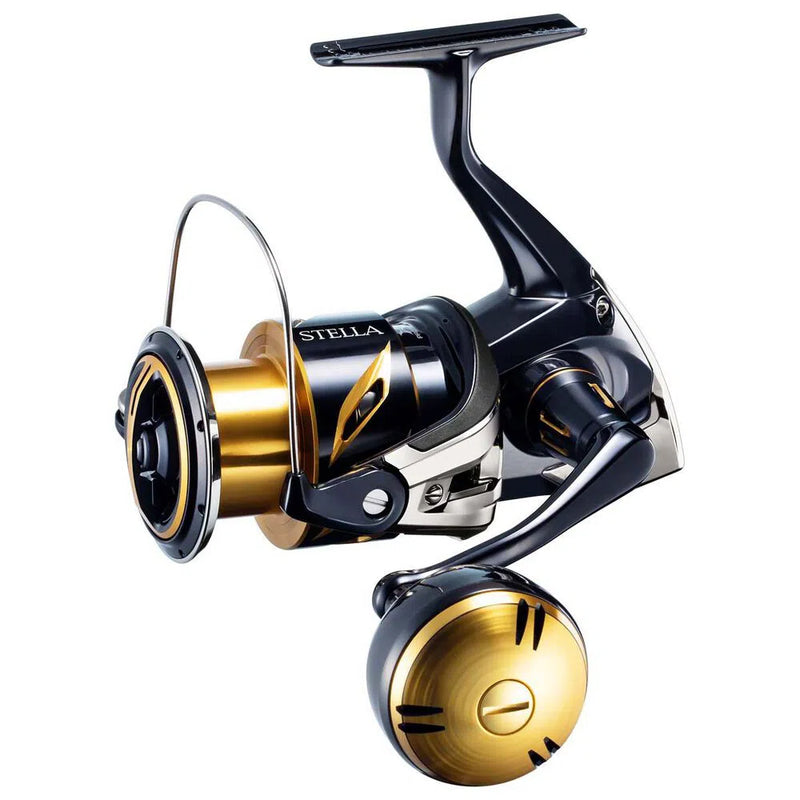

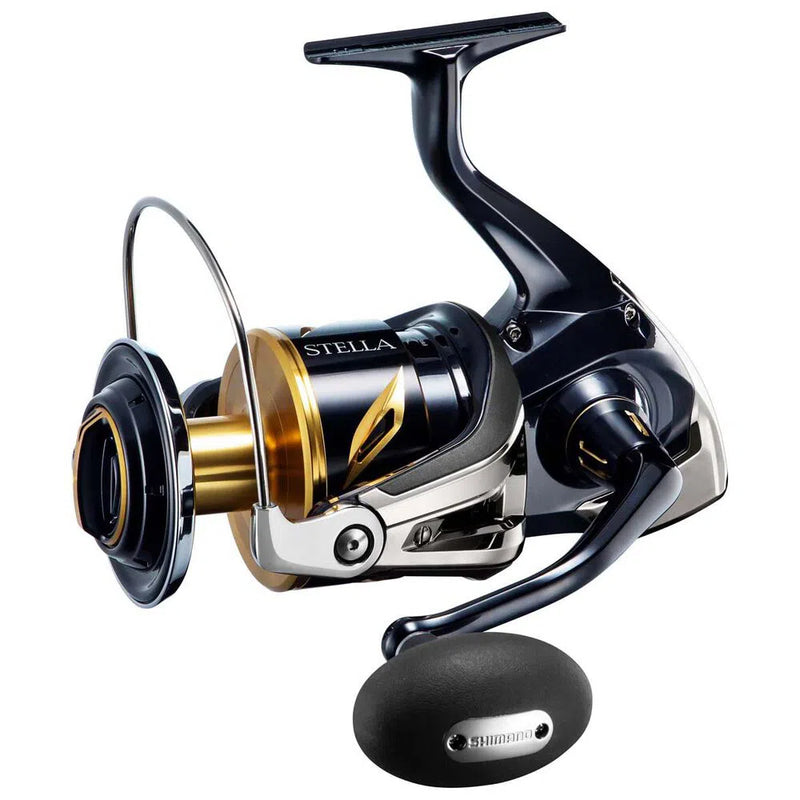

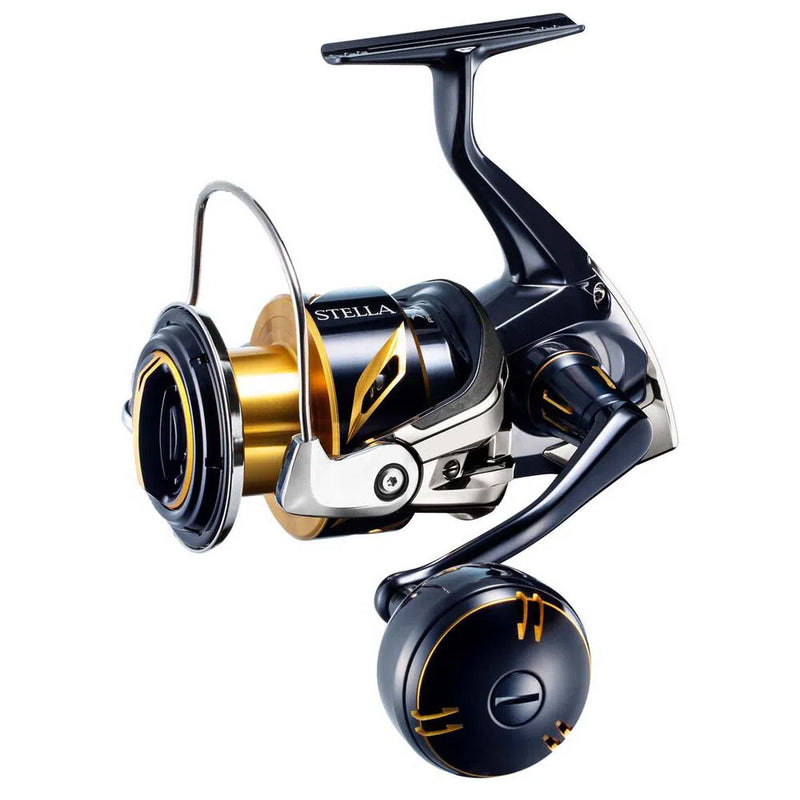

The Stella SW represents the pinnacle of innovation for Shimano reel technology and fish-fighting performance. For increased power and enhanced durability, this series features a range of upgrades. Infinity Drive has been incorporated for light and powerful winding and the upgraded Heatsink Drag provides superior drag performance under extreme heat. A water resistance rating of IPX8 is achieved through X-Protect and X-Shield with the aluminium Hagane Body acting as a rigid and super tough outer shell. The HG models are designed for both casting and jigging, whereas PG is geared for jigging applications and XG for saltwater casting.
Specifications
| DESCRIPTION | BEARINGS | MAX DRAG (KG) | GEAR RATIO | RETRIEVE PER CRANK (CM) | POWERPRO BRAID (LB/YDS) | WEIGHT (G) |

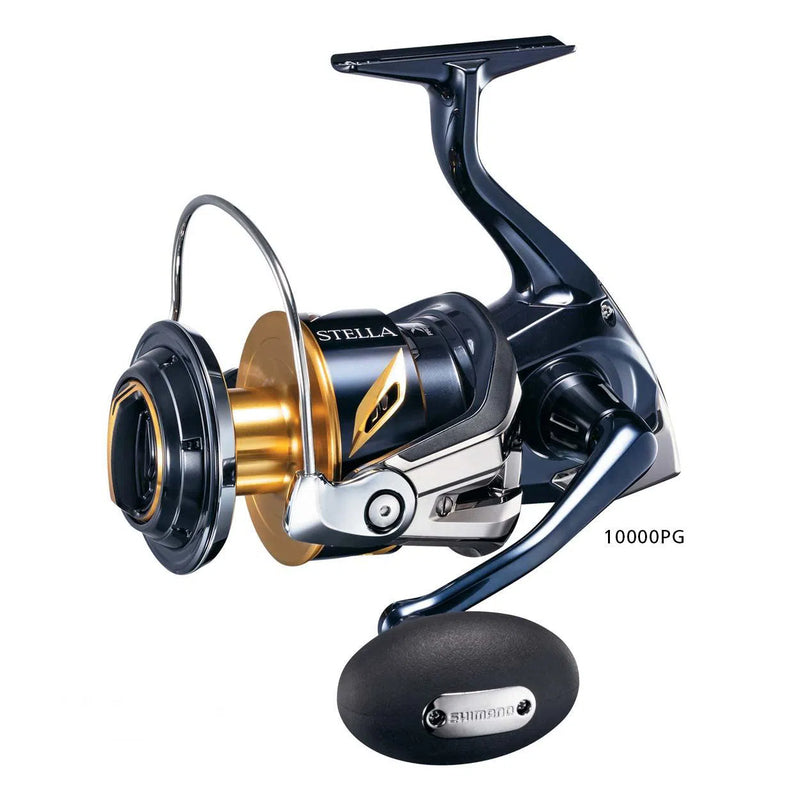

| STELLA SWC 10000 PG | 13+1 | 25 | 4.9.1 | 102 | 50/360 | 670 |

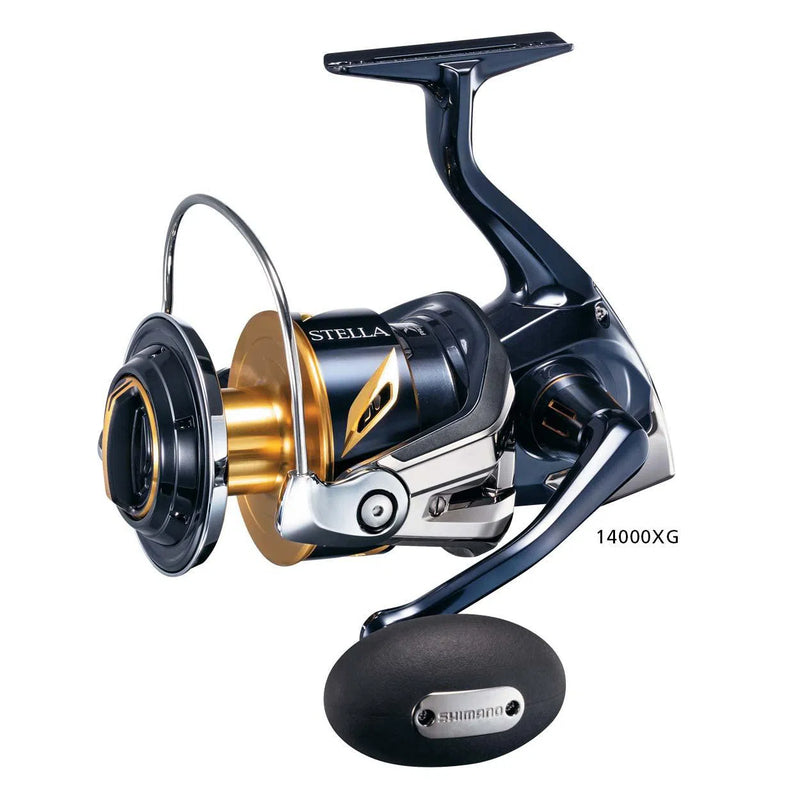

| STELLA SWC 14000 XG | 13+1 | 25 | 6.2.1 | 134 | 60/315 | 675 |
| STELLA SWC 18000HG | 13+1 | 28 | 5.7:1 | 129 | 80/400 | 875 |

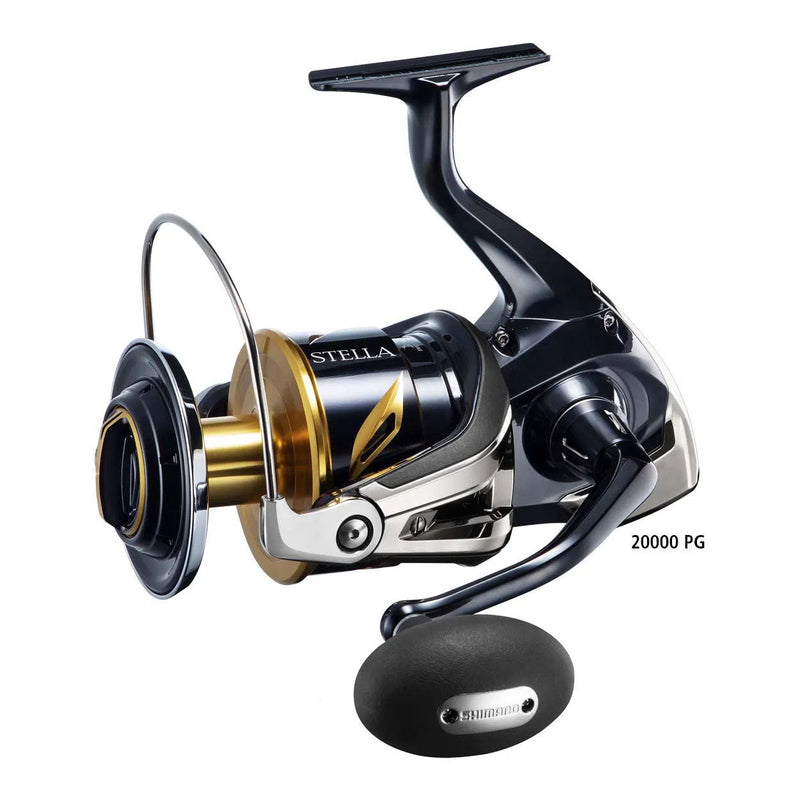

| STELLA SWC 20000PG | 13+1 | 28 | 4.4:1 | 104 | 80/440 | 885 |
| STELLA SWC 30000 | 13+1 | 25 | 4.4:1 | 131 | 100/570 | 975 |
| STELLA SWC 4000 XG | 12+1 | 11 | 6.2:1 | 101 | 10/200 | 355 |

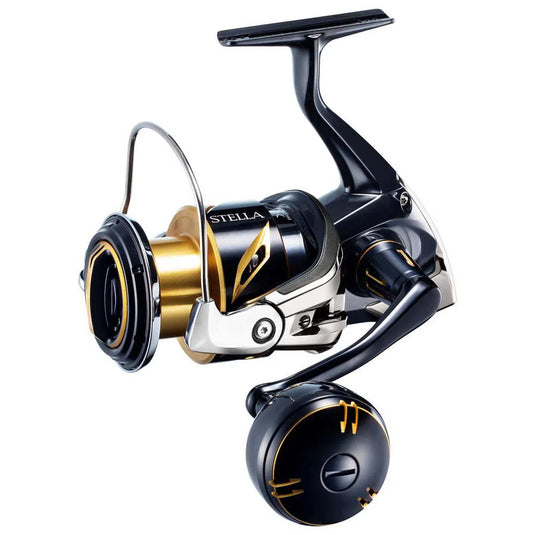

| STELLA SWC 5000 HG | 13+1 | 13 | 5.7:1 | 97 | 20/245 | 420 |

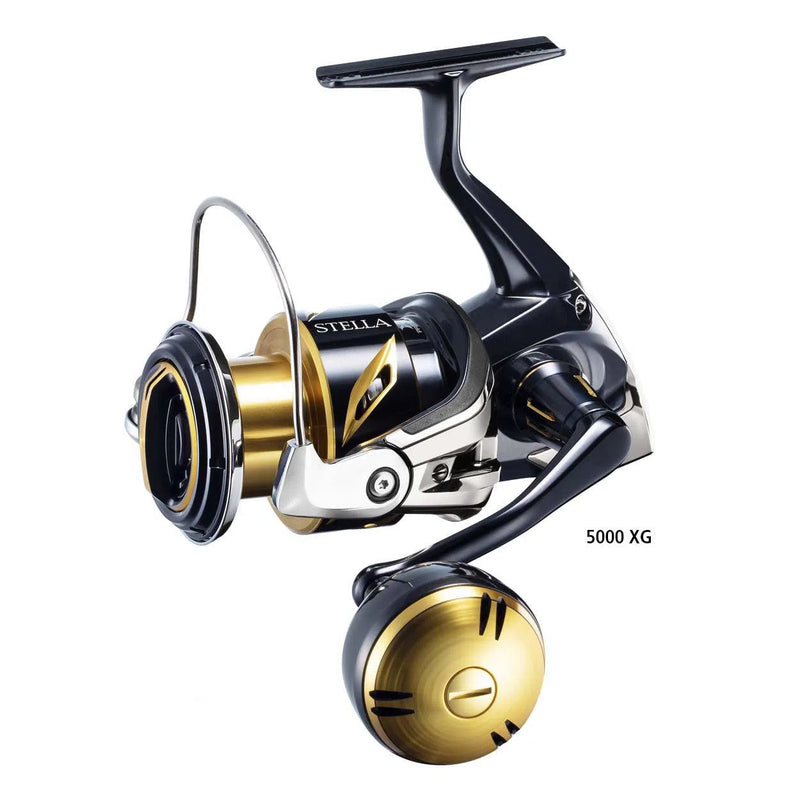

| STELLA SWC 5000XG | 13+1 | 13 | 6.2:1 | 105 | 20/245 | 420 |
| STELLA SWC 6000HG | 13+1 | 13 | 5.7:1 | 103 | 30/290 | 425 |

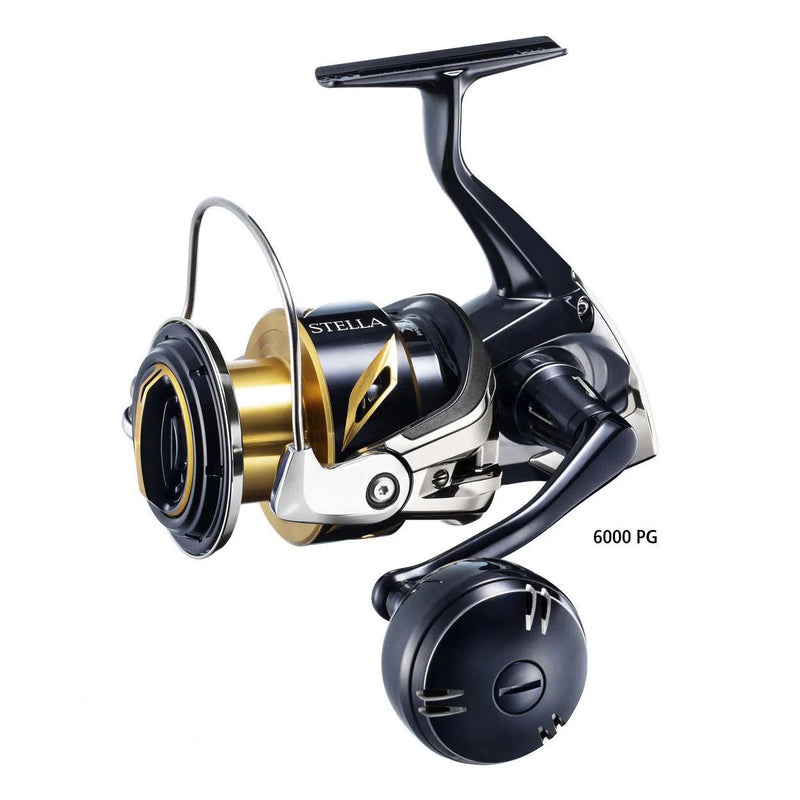

| STELLA SWC 6000PG | 13+1 | 13 | 4.6:1 | 83 | 30/290 | 425 |
| STELLA SWC 6000XG | 13+1 | 13 | 6.2:1 | 112 | 30/290 | 425 |

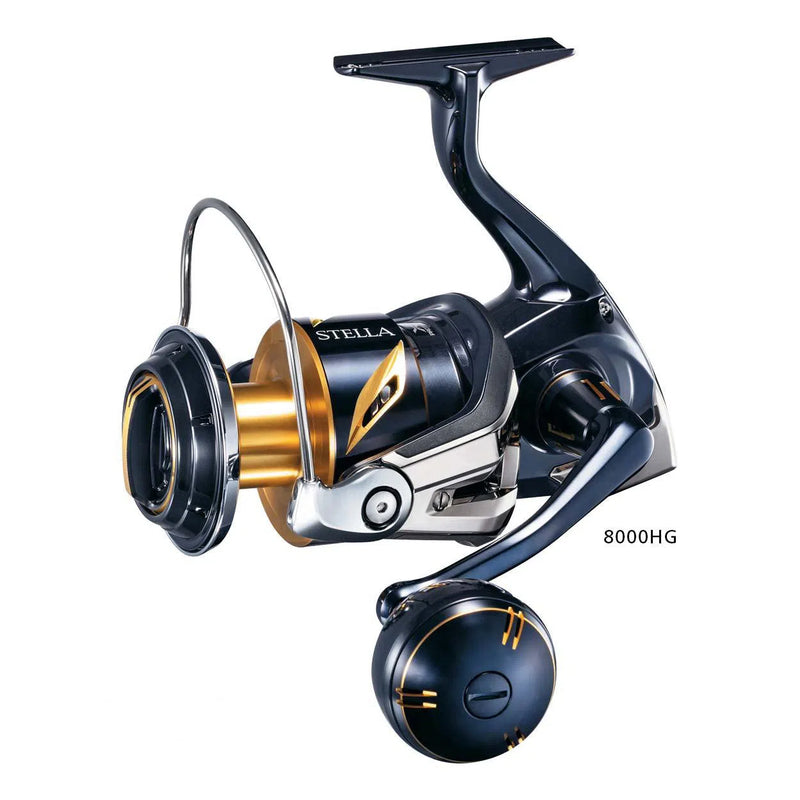

| STELLA SWC 8000 HG | 13+1 | 25 | 5.6.1 | 107 | 40/340 | 625 |

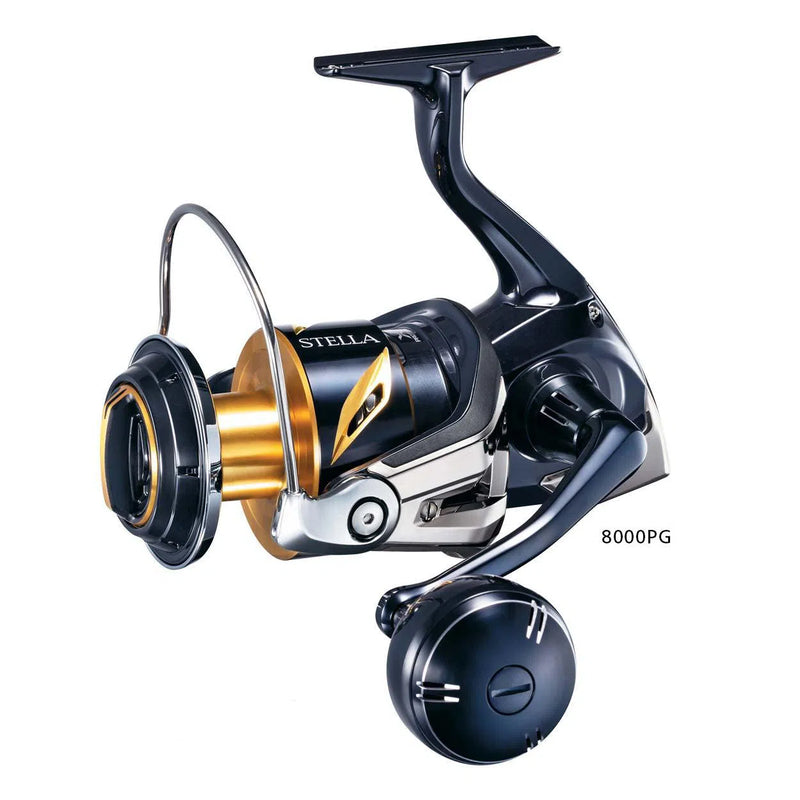

| STELLA SWC 8000 PG | 13+1 | 25 | 4.9.1 | 94 | 40/340 | 625 |
